Door Interlock System

Door Inter Locking System achieves in prevention of process area contamination by in clean room areas & microbiological labs, any personnel passing through an unclassified area to a classified area is required to pass through series of rooms. In each room certain steps need to be followed by defined guidelines prepared by various agencies around the world. This procedure ensures thatthe person is not carrying any external microbiological and particles contamination in to the process area and also the pressure in each room is maintained before openingof door. Door Inter LockingSystem Ensuresthatwhen one doorfora room is - OPEN then all other doors in that particular room are closed. - In Emergency an override key is available on a push button moduleforall door'sopening. - Preventingsimultaneous access of doors/Rooms.

Features:

• Advanced Micro controller based.
• Supports Maximum number of doors with the cascading of 2 Door and 3 Door.
• Controlling systems as per user requirements.
• Support more than 99 Doors in cascading.
• Supports Emergency & fire alarm Stations.
• Sequence of door inter Locking is field configurable with the DIP SWITCH.
• Delay between door openings 10 Sec.
• Auto close time is 10 Sec.
• Facility available to read feed back from Magnetic Lock.
• Easy to installation & userfriendly wiring.
• Softtouch Membrane keypad.
• System can also be connect to Building Management System (BMS).

OPTIONAL FEATURES

• Supports Access control module interface.
• Available Doors Real Time Event Logging and output to PC Connectivity.

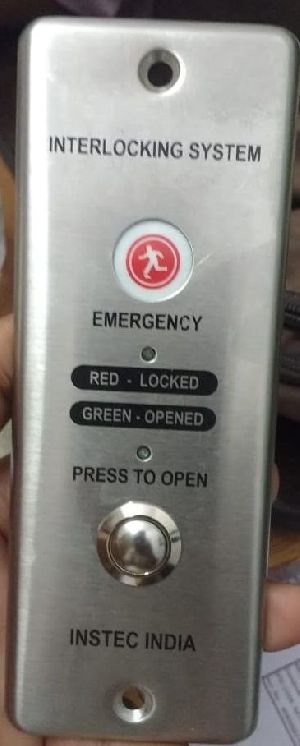

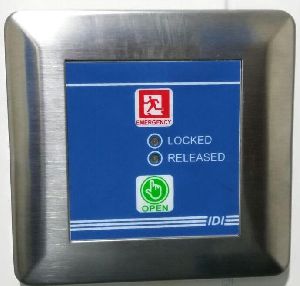

Door Access Panel Inputs & Outputs

• Inputs :2 No, switches. per door.
• Outputs : 2nos. led indicator per switch.

Control Card Digital Inputs & Outputs

• Inputs : 1No, per door.
• Outputs: 1 relay output230V/ 5A.
